RESISTANCE CHECKS

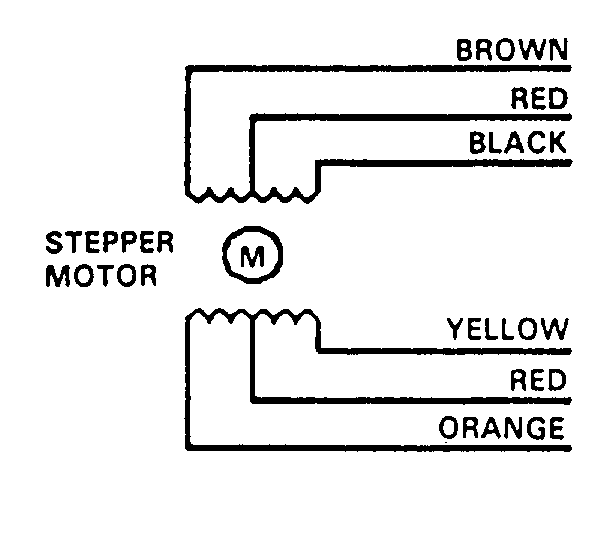

[Stepper motor resistance check]32 ohms end to centertap
64 ohms end to end

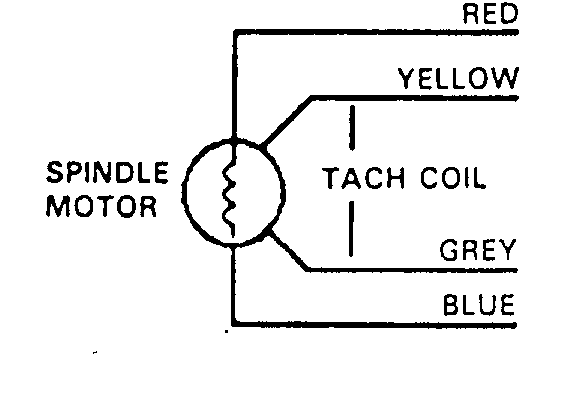

[Spindle motor resistance check]Motor coil = 17 ohms
Tach coil = 175 ohms at rest
Tach coil = 135 - 190 ohms in motion

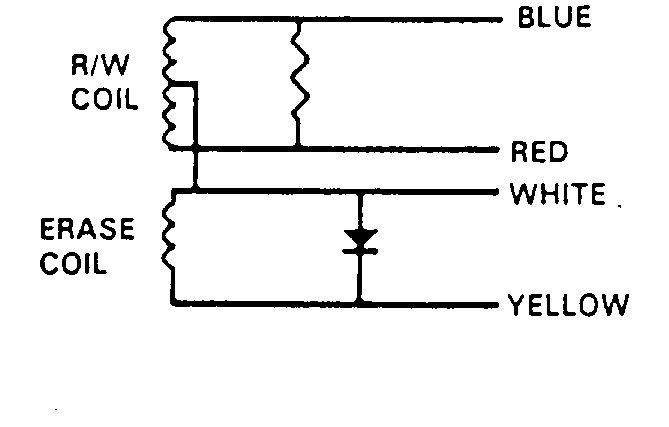

[R/W and erase coil resistance check]R/W end to end = 32.4 ohms
R/w end to centertap = 16.3 ohms
Erase coil end to end = 10.5 ohms
