PARTS LIST

32551901 Alps Drive (Black)
32551902 Alps Drive (Brown)
  1. 31410001 ALP DOOR/HUB ASSEMBLY
    1. Door Assy w/Spring
    2. Hub/Collet Assy
    3. Arm Support Assy
  2. 41310101 ALP LEFT DISK GUIDE ASSEMBLY
    1. Diskette guide
    2. LED Assy w/Harness
    3. Write Protect Assy
  3. 31410201 ALP RIGHT DISK GUIDE
  4. 31410301 ALP FRONT BEZEL (Black)
    31410302 ALP FRONT BEZEL (Brown)
  5. 31410401 ALP R/W HEAD ASSEMBLY
    1. R/W Head
    2. Load Arm w/Pad
    3. Metal Band
    31410501 ALP STEPPER MOTOR ASSEMBLY
    1. Stepper Motor w/Harness
    2. Stepper Motor Pulley
  6. 31410601 ALP D.C. MOTOR
  7. 31410701 ALP MOTOR CONTROL PCB ASSEMBLY
    1. Motor Control PCB
    2. Harness Array
  8. 31410801 ALP TENSION PULLEY ASSEMBLY
    1. Pulley Wheel w/Spring
    2. Plastic Housing
  9. 31410901 ALP HOUSING/SPINDLE ASSEMBLY
    1. Housing Base
    2. Spindle Assy
    3. L/R Guide Shafts
    31411001 ALP DRIVE BELT
  10. 31411101 ALP EJECT ASSEMBLY
    1. Eject Plate
    2. Eject Spring
    31411201 ALP HARDWARE
    1. Assorted Screws
    2. Zero Stop Tab
    3147401 UNV Replacement Load Pad

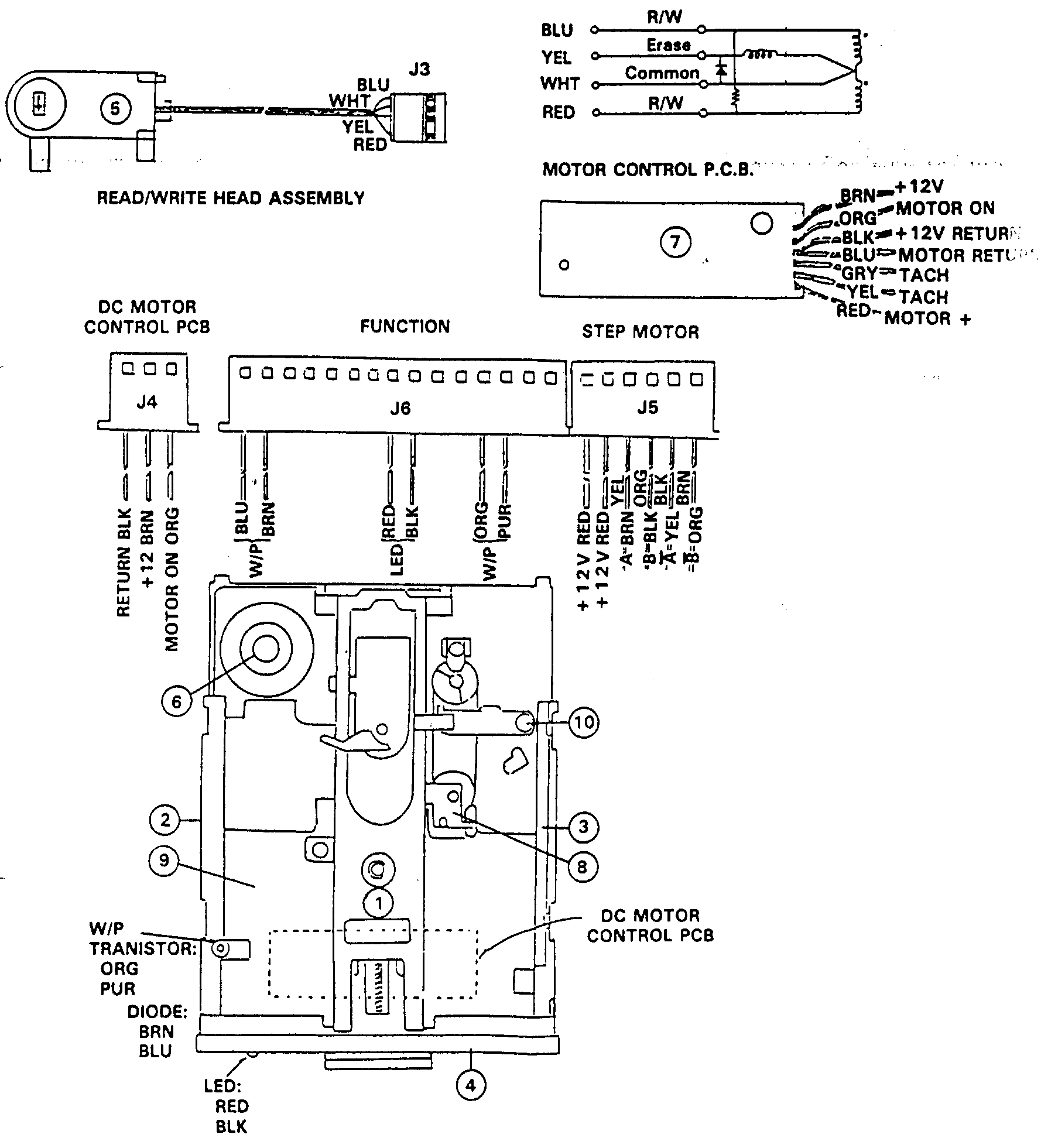

ALPS DRIVE ASSEMBLIES
1540/1541

[Power Supply Assembly #1540002]
